ALUMINUM PARABOLIC with Trimmable Flanges

ALUMINUM PARABOLIC
1.4" (35mm) DEEP WITH TRIMMABLE FLANGES

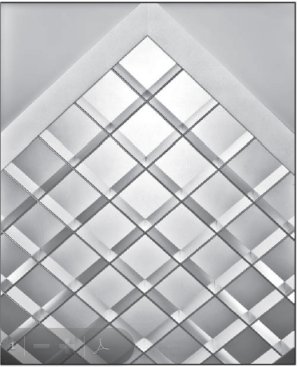

Lumiflux L14
Lumiflux L14 is the industry standard full 1.4" (35mm) deep parabolic aluminum louver. Available from stock
with a trimmable flange Lumiflux L14 is sized to fit most luminaires and configured to satisfy most applications.
This louver is a full 1.4" (35mm) deep to assure maximum control of luminance from whatever cell
configurations that are specified. Variable cell configurations are available from stock.

Number of Cells	18	78	105
Nominal Cell Size	6.50” 165.1mm	3.25” 82.55mm	2.75” 69.85mm

2 X 4 ID=19.50” X 43.50” OD=22.50” X 46.50” 603 X 1881mm				Price per Piece
2 X 4 ID=19.50” X 43.50” OD=22.50” X 46.50” 603 X 1881mm				Pieces per ctn
Number of Cells	Cell Configuration	Finish	Part Number	Pieces per ctn	1-60	61-120	120+
18	3 x 6	LI Semi-Specular	L14-24-18-LC	10	39.80	37.80	35.80
78	6 x 12	LI Semi-Specular	L14-24-78-LC	10	78.80	75.80	72.80
105	7 x 15	LI Semi-Specular	L14-24-105-LC	10	96.50	92.50	88.50

2 X 2 ID=19.50” X 19.50 OD=22.50” X 22.50” 572 X 572mm				Price per Piece
2 X 2 ID=19.50” X 19.50 OD=22.50” X 22.50” 572 X 572mm				Pieces per ctn
Number of Cells	Cell Configuration	Finish	Part Number	Pieces per ctn	1-60	61 - 120	120+
9	3 x 3	LI Semi-Specular	L14-22-9-LC	20	23.40	22.40	21.40
36	6 x 6	LI Semi-Specular	L14-22-36-LC	20	38.60	36.60	34.60
49	7 x 7	LI Semi-Specular	L14-22-49-LC	20	52.60	50.60	48.60
