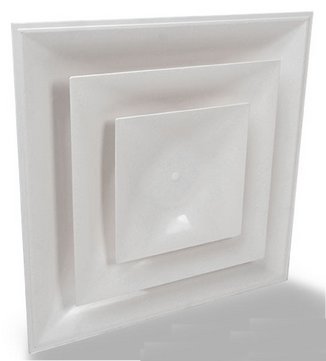

STRATUS DIFFUSERS
Revolutionary New Product
Made from Engineered Polymers

Air Flow Diffusers for HVAC

Cone Stratus Diffusers and Plaque Stratus Diffusers $49.95 each.
Part #'s and packaging below.

Fire Rated, UL2043, On White Cone and
20” x 20” Square Duct Ready Grille
For Fire Rated White Cone Add FR To Item Number  $68.95 Each

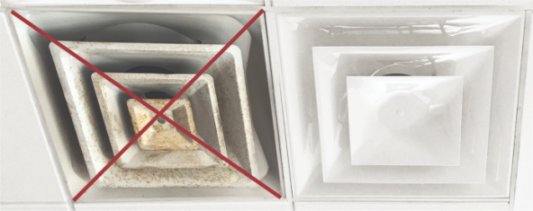

No Rust, No Corrosion, No Fading, No Metal


  • Better than metal, they're plastic!
    Won't rust, corrode or fade
    Dishwasher safe
    Never needs painting
    Indistinguishable from metal when installed


  • Available in both Cone and Plaque styles
    white and black


    Perfect For:
    Hospitals
    MRI Centers
    Restaurants
    Theaters
    Food Processing
    Offices
    Commercial Buildings
    Clean Environments

Engineered Polymers & Aluminum screws
STYLES

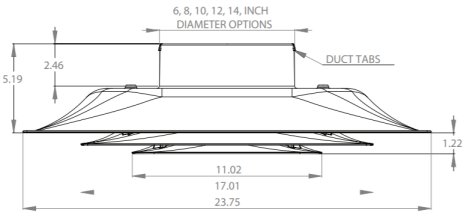

Cone: 23.75” x 23.75” for T-grid ceilings
Plaque: 23.75” x 23.75” for T-grid ceilings
NECK SIZES
6”, 8”, 10”, 12”, 14” (nominal duct sizes)
COLORS:   White, Black
Custom colors available with minimum order quantity
Performance data available upon request
MORE DURABLE
• No rust, no corrosion
• Won’t fade or yellow
• Scratches don’t show
• No painting or repainting
• Won’t bend
• Mildew resistant
PEAK PERFORMANCE
• Air flow consistent with metal
• Antistatic
• Resists sweating
• Flame Resistant
(Meets UL94HB
flame spread test
EASY INSTALLATION
• 50% lighter than metal
• Extra tall neck - 2 3/8”
• No cut fingers/sharp edges
• Drop/damage resistant
• Compatible with standard
duct and damper sizes
ATTRACTIVE
• Consistent smooth finish
• More dimensionally stable
• Indistinguishable from
metal when installed

Cone Stratus Diffusers and Plaque Stratus Diffusers $57.50 each.
Part #'s and packaging below.

All Plastic Diffusers

  • Won't rust, corrode or fade
  • Dishwasher safe
  • Never needs painting
  • Indistinguishable from metal when installed

Back Side of Cone Diffuser

Prevent Blowing Hot or Cold Spots
Quickly Slide In T-Grid Ceilings
to Redirect Air Flow

Corner Style Air Diverter   $49.50
STR-ADC-W
Side Style Air Diverter
STR-ADS-W

Duct / Neck Size
6”, 8“, 10”, 12”, 14”
T-bar Lay-In 24” x 24”

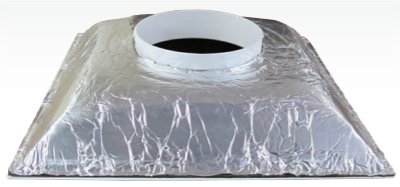

Insulation Blanket for UN-RUST-ABLE
 Stratus™ Diffusers
Insulation Blanket for
UN-RUST-ABLE
 Stratus™ Diffusers
R6 Thermal Resistance
Fiberglass Insulation

Can be pre-attached to
 Stratus™ Diffusers

#360138

Three Sizes Available for T-Grid Ceilings

  • 0.25"
    0.375"
    0.50"
    perforations

  • Overall size: 23.75" x 23.75"
    0.93" thick

All Plastic

  • Won't rust, corrode or fade
  • Never needs painting
  • Easy to clean
  • Anti-static
  • Resists sweating

Flame Resistant

  • Meets UL94HB flame spread test

Attractive

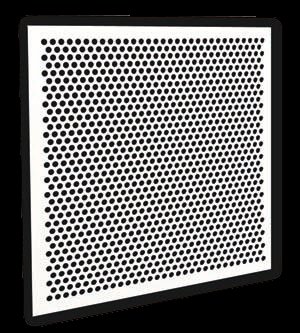

 Perforated Panels


  • Available in white, custom colors with minimum order quantity

  • Circular design creates stylish,
    modern look

  • Consistent smooth finish

  • Shipped with removable plastic film,
    • keeps panels clean for installation


 Perforated Panels

Item Number Description

Quantity
per Ctn

Carton
Price

STR-PERF-2238-2PK 3/8" Holes, Package of 2 2 $ 66.00
STR-PERF-2238-5PK 3/8" Holes, Package of 5 5 $134.00
STR-PERF-2214-2PK 1/4" Holes, Package of 2 2 $ 66.00
STR-PERF-2214-5PK 1/4" Holes, Package of 5 5 $134.00
STR-PERF-2212-2PK 1/2" Holes, Package of 2 2 $ 66.00
STR-PERF-2212-5PK 1/2" Holes, Package of 5 5 $134.00
STR-PERF-2214 1/4" Holes, Package of 20 20 $270.25
STR-PERF-2238 3/8" Holes, Package of 20 20 $270.25
STR-PERF-2212 1/2" Holes, Package of 20 20 $270.25



Universal Reducer for Stratus Diffusers and Returns

Converts neck size of diffusers and returns

STR-NRD-BK     Sold in packs of 10 for $205.85 (per pack of 10)

Reduce Inventory

  • Stock one neck size - 14"
  • Scales down 14" neck to 6", 8", 10", or 12"
  • Sold alone in kits with 14" diffusers and returns

Reduce Prep Time

  • No measuring & counting
  • No running out of neck sizes
  • Quickly adjust reducer onsite with needle nose pliers

Reduce Install Time

  • Snaps onto neck and holds tight, no need to tie
    it on or use screws
  • Rigid plastic won't collapse during install like
    rubber product

Reduce Frustration

  • Unique Strapping Ridge prevents slip off when
    reducer is strapped onto duct



CONE DIFFUSERS
With
Insulation Blanket add $20.00 and R6
Item Number Description Neck/Duct Size Face or Overall Size Mount Carton Qty. Weight
per Carton
Price
STR-C-6W White Cone  6" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-8W White Cone  8" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-10W White Cone  10" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-12W White Cone  12" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-14W White Cone  14" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44

For Fire Rated White Cone Add FR To Item Number  $68.95

STR-C-6BK Black Cone  6" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-8BK Black Cone  8" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-10BK Black Cone  10" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-12BK Black Cone  12" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44
STR-C-14BK Black Cone  14" 23.75" x 23.75" T-Bar 1 5.5 lbs. $57.44

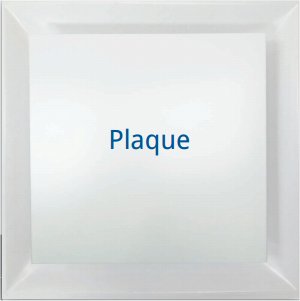

PLAQUE DIFFUSERS
Item Number Description Neck/Duct Size Face or Overall Size Mount Carton Qty. Carton Wt. Price
STR-PQ-6W White Plaque  6" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-8W White Plaque  8" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-10W White Plaque  10" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-12W White Plaque  12" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-14W White Plaque  14" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-6BK Black Plaque  6" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-8BK Black Plaque  8" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-10BK Black Plaque  10" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-12BK Black Plaque  12" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
STR-PQ-14BK Black Plaque  14" 23.75" x 23.75" T-Bar 1 5 lbs. $66.06
With Insulation Blanket add $20.00 and R6
Item Number Description Quantity per Carton

Price per Piece

STR-PERF-2238-2PK 3/8" Holes, Package of 2 2 $38.35
STR-PERF-2238-5PK 3/8" Holes, Package of 5 5 $38.88
STR-PERF-2214-2PK 1/4" Holes, Package of 2 2 $33.78
STR-PERF-2214-5PK 1/4" Holes, Package of 5 5 $69.86
STR-PERF-2212-2PK 1/2" Holes, Package of 2 2 $32.95
STR-PERF-2212-5PK 1/2" Holes, Package of 5 5 $270.25
STR-PERF-2214 1/4" Holes, Package of 20 20 $270.25
STR-PERF-2238 3/8" Holes, Package of 20 20 $270.25
STR-PERF-2212 1/2" Holes, Package of 20 20 $270.25





Eggcrate Return Filter Grilles

Made from Engineered Polymers

Eliminates Metal - No Rust

23.75" x 23.75" Overall Size for a

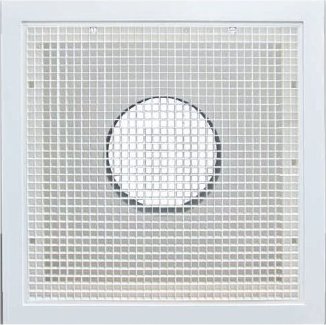

Round Collar Transition Grille
for 6”, 8”, 10”, 12”, &14” Ducts
$71.70


23.75" x 23.75" Overall Size for a

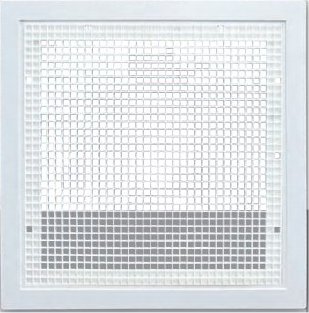

20” x 20” Square Duct Ready Grille
STR-ERFG-W      White $62.05 each
STR-ERFG-W-FR     White 69.75 each
For Fire Rated Add FR To Item Number
STR-ERFG-B   Black $62.05 each


EASY INSTALL & UPKEEP

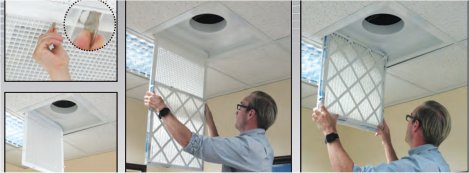

• Hinged grille face drops down to:

- quickly change filter

- easy removal for cleaning

- commercial dishwasher safe

• 50% lighter than metal

• No cut fingers/sharp edges

MORE DURABLE

• No rust, no corrosion

• Won’t fade or yellow

• Scratches don’t show

• No painting or repainting

• Won’t bend

• Mildew resistant



PEAK PERFORMANCE

• Air flow consistent with metal

• Antistatic

• Resists sweating

• Flame Resistant

(Meets UL94HB flame spread test

ATTRACTIVE

• Consistent smooth finish

• More dimensionally stable

• Indistinguishable from metal
  when installed

• Available in white, black and
  custom colors

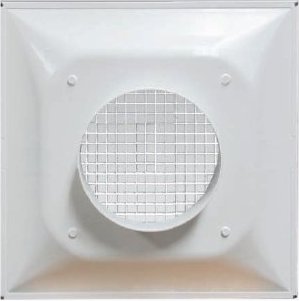

Back side of return grille
with round neck transition

MATERIAL

Engineered Polymers

Stainless Steel Screws

OVERALL SIZES

23.75” x 23.75” for T-grid ceilings

Round Neck Transition Style - 6.9” H, 6.2 lbs.

20” x 20” Square Duct Ready - 2.1”H, 3.5 lbs.

FILTER SIZE

Industry Standard 20“ x 20” x 1” filter,

measuring 19.5“ x 19.5” x 7/8” or less

NECK SIZES FOR ROUND NECK TRANSITION

Extra tall neck - 2 3/8” long

Available in 6”, 8”, 10”, 12”, 14” dia. (nominal duct sizes)

COLORS

White, Black

Custom colors available with minimum order quantity

Performance data available upon request

PERFECT FOR:

Hospitals

MRI Centers

Restaurants

Theaters

Food Processing

Offices

Commercial Buildings

Clean Environments

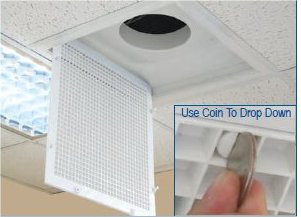

Drop down hinge makes filter
changes and removal of
eggcrate face for cleaning, easy.



STRATUS™ EGGCRATE RETURN FILTER  GRILLES

ROUND COLLAR TRANSITION GRILLES       Both Styles Available in White & Black


Front of Grill


Back of Grill





Both Styles
Available in White & Black

Item Number

Description

 Neck/Duct Size

Face or Overall Size

Mount

Filter Size

Carton Qty.

Carton Wt.

Price

STR-ERFG-6W

White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 6"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-8W

White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 8"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-10W

White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 10"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-12W

White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 12"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-14W

White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 14"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-6BK

Black Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 6"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-8BK

Black Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 8"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-10BK

Black Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 10"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-12BK

Black Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 12"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

STR-ERFG-14BK

Black Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 14"

 23.75" x 23.75"

 T-Bar

20" x 20 "x 1"

measuring 19.5"x19.5"x7/8" or less

 1

 8 lbs.

$78.40

20" X 20" SQUARE DUCT READY GRILLES       Both Styles Available in White & Black





Item Number

Description

 Neck/Duct Size

Face or Overall Size

Mount

Filter Size

Carton Qty.

Carton Wt.

Price

 STR-ERFG-W

 White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 For 20"x20" Square Duct

 23.75" x 23.75"

 T-Bar

 20" x 20 "x 1"
measuring 19.5"x19.5"x7/8" or less

 1

 5 lbs.

 $62.05

 STR-ERFG-W-FR

Fire Rated
White Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 For 20"x20" Square Duct

 23.75" x 23.75"

 T-Bar

 20" x 20 "x 1"
measuring 19.5"x19.5"x7/8" or less

 1

 5 lbs.

 $62.05

STR-ERFG-BK

 Black Eggcrate Return Filter Grille 1/2" x 1/2" x 1/2" cubed core

 For 20"x20" Square Duct

 23.75" x 23.75"

 T-Bar

 20" x 20 "x 1"
measuring 19.5"x19.5"x7/8" or less

 1

 5 lbs.

 $62.05




Use coin or screwdriver the two plastic screw heads and release the eggcrate return face. Slide 1" thick filter onto eggcrate,
sliding through filter clips
Push filter past the closure knobs.
Eggcrate face will hand down
on hinges. You can lift off and
remove face for cleaning. If
inserting or replacing filter leave
hanging.


Lift face up and close. Secure by
turning the two plastic screw
heads with a coin or screwdriver.









Eggcrate Louvers Aluminum Eggcrate Louver Flat Blade
Plastic Parabolic Louvers Aluminum Parabolic
Parahex Louvers Lumiflux L14
Decorona ATTB-Baffle
Angleflex Parabolic Aluminum Cross Baffle
Frost LEDFlat Sheet Aluminum Cross Baffle
Globes and Spheres Directional Aluminum Louver
Post Top Fitters LB14 Baffle
Special Shapes RFK2 Retrofit Kit

Street Lamp Globes

RFK3 Parabolic Aluminum Retrofit Kit
Dark Sky Reflector Bafflex Aluminum Cross Baffle
HVAC Eggcrate Return Grilles and Registers
STRATUS DIFFUSERS
Sight-Guard Grilles
HOME
Quote & Order Form

IF THERE IS EVEN A CREASE OR
A DING IN THE BOX  PLEASE MARK AS
DAMAGED OTHERWISE
NO CLAIM CAN BE MADE.
IF THERE IS NO DAMAGE THAT IS OK,
BUT FREIGHT COMPANIES AND
UPS ARE REQUIRING MORE VERIFICATION
TO PROCESS DAMAGE CLAIMS.
BREAKAGE OR DAMAGE TO
CARTONS MUST BE NOTED WHEN
CUSTOMER SIGNS FOR DELIVERY.
ANY CLAIMS FOR MISSING PARTS
MUST BE MADE WITHIN 7 DAYS OF DELIVERY.

To our customers: If you are having any difficulty reading or understanding
our products and their descriptions on our website, PLEASE, feel free to call
or write us and we will be more than happy to work with you.
 We value our customers, and please let us know if you require further information or help.

Edith Aiken Company
Edee Aiken
305 New Darlington Road
Media, PA 19063
