Angleflex Directional Louver - Styrene

Angleflex

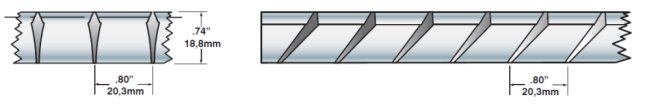

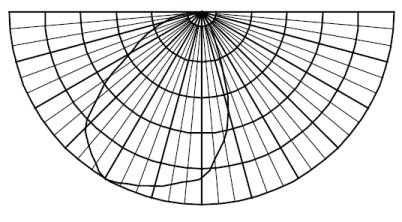

Angleflex is the most sophisticated injection molded directional louver available. This louver is designed for those special applications that require highly restricted distribution in one direction, the majority of distribution in the opposite direction and 45 degree cut-off in the perpendicular plane. By combining angled and parabolic blades, Angleflex can provide the highest levels of efficiency and lighting control. This panel has been specifically designed to adapt to the dimensional requirements of the world's major ceiling modules.

Panel Sizes

  • 11-15/16" x 24-7/16" (303 x 620mm)
  • 24-7/16" x 47-3/4" (620 x 1214mm)

Materials

  • Polystyrene

Finishes

  • Silver Permalux





CEILING STYLE   SILVER PERMALUX

AF-24-P
2X4
24-7/16” x 47-3/4”
620 x 1213mm
5 PCS/CTN: 62 LBS / 24kg

AF-22- P
2X2
24-7/16” x 23-3/4”
620 x 606mm
10 PCS/CTN: 52 LBS / 24kg

AF-14-P
1X4
11-3/4” X 47-11/16”
298 x 1213mm
10 PCS/CTN: 52 LBS / 20kg

$112.40 $30.90 $30.90

*Minimum for Plastic louvers is $100.00

*For less than full cartons there is a $30.00 charge.

*Prices are PER PIECE not PER CARTON

**Shipping IS NOT included in prices.
For UPS there is a $10.00 packaging charge in addition to the shipping cost.
