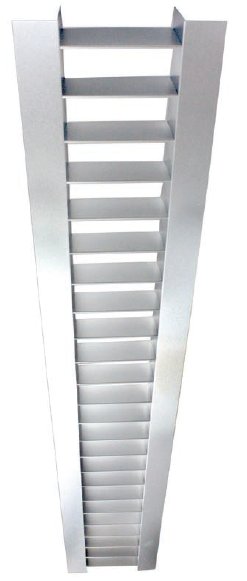

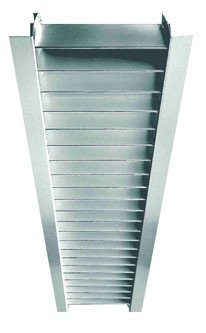

PARABOLIC ALUMINUM BAFFLE LB14

LB14 parabolic aluminum baffles are available as highly adaptable stock parts or can be manufactured to

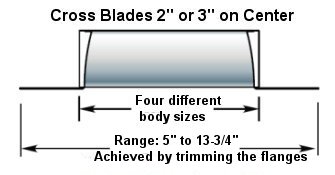

meet specific requirements. Stock parts feature cross blades either 2” (51mm) or 3” (76mm) on center and
trimmable flanges that facilitate immediate shipment of parts meeting almost any dimensional requirement.
These nonflammable aluminum baffles are 1.4” (35mm) deep to assure maximum luminance control. Each 4’
part begins and ends with a half cell (1” or 1-1/2”) so that the baffles can be butted end to end for a
continuous appearance.

Dimensional Size	Minimum Trim Size**	Finish	Blade Centers	Part #	CTN. QT.	Price/Piece
Dimensional Size	Minimum Trim Size**	Finish	Blade Centers	Part #	CTN. QT.	1-60	61-120	120+
7-3/4” X 48”	5” X 48”	LI Semi-Specular	2"	LB14-082-LC	30	55.50	51.50	47.50
			3"	LB14-083-LC	30	41.80	39.80	37.80
9-3/4” X 48”	7” X 48”	LI Semi-Specular	2"	LB14-102-LC	20	57.90	54.90	51.90
			3"	LB14-103-LC	20	43.50	41.50	39.50
11-3/4” X 48”	9” X 48”	LI Semi-Specular	2"	LB14-122-LC	20	60.20	57.20	54.20
			3"	LB14-123-LC	20	45.00	43.00	41.00
13-3/4” X 48”	11” X 48”	LI Semi-Specular	2"	LB14-142-LC	16	62.40	59.40	56.40
			3"	LB14-143-LC	16	46.50	44.50	42.50
*ALL PARTS NOT LISTED WILL BE MADE TO ORDER AND SET UP CHARGES MAY APPLY.
** Minimum Flange Size is 1/4" each side example: Minimum trim size of 5" will have an opening of 4-1/2" and a 1/4" flange on each side.
Cuts - $1.00 per cut.
