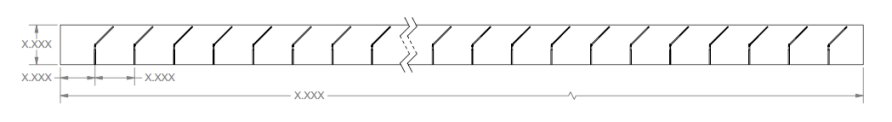

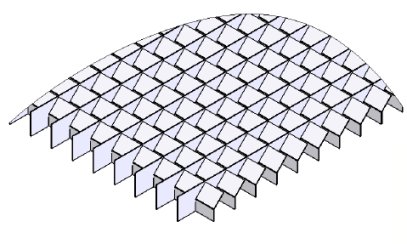

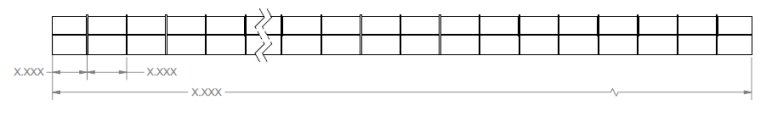

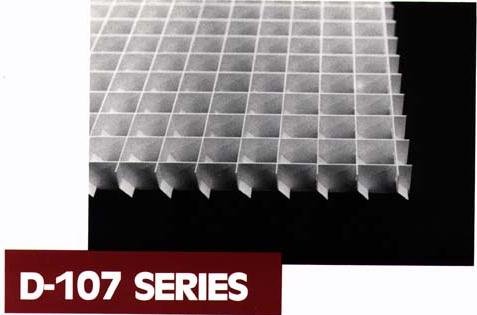

Directional Aluminum Louver D-107 Series

A directional louver for wall wash and other applications requiring asymmetrical distribution.

Material
.025" thick aluminum

Available finishes
Mill, white, anodized, black, gray, bronze, and other colors upon special request.





Catalog No.

Depth

Width

Length

D-107-1-24

1"

23¾

47¾

D-107-1-22

1"

23¾

23¾

D-107-.75-24

¾"

23¾

47¾

D-107-.75-22

¾"

23¾

23¾

Color

Size

1- 49 pieces

50 - 99 pieces

100+ pieces

White 2' x 4' 114.56 104.56 94.56
Mill 2' x 4' 104.16 94.16 89.16
White 2' x 2' 57.28 52.28 47.28
Mill 2' x 2' 52.08 47.08 42.08

Prices for either 1" or 3/4" depth are the same
For under 100 pieces there is a $275.00 set up charge.
