HVAC EGGCRATE RETURN GRILLES
AND REGISTERS

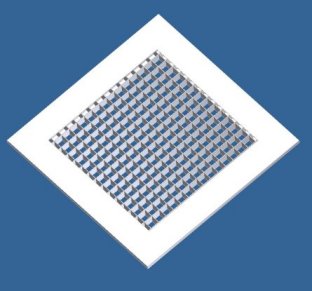

Front of 1/2" Cube Eggcrate Grille
for T-Bar Ceiling
Return, T-Bar (No-Screw Holes), White


Back of 1/2" Cube Eggcrate Grille
for T-Bar Ceiling
Return, T-Bar (No-Screw Holes), White


1/2" Cube Eggcrate Grille


Radial Dampers

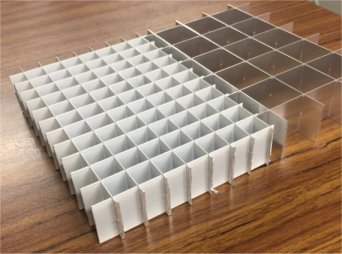

ALUM155 & ALUM-1

*All Registers must be purchased in full cartons.

*Shipping IS NOT included in prices.

Eggcrate Grilles

Some distinct features worth mentioning include:

  • Strong frame and core, all aluminum construction
  • Smooth and even finish around frame, Industry Standard "British White"
  • Eggcrate cells are squared and centered for a balance and uniform appearance
  • Micro-welded neck corners
  • No ugly hold down tabs, nothing to show through the grilled
  • No rattling, squeaking, or vibrations, eggcrate is securely locked into our unique "frame channel"
  • Surface mount units include countersunk mounting holes for a flush appearance with matching color screws provided

Package to protect:

  • Unique corner guards protect against damage, reducing returns and scrap
  • Heavy duty shrink wrap keeps the finish scratch free and dust free
  • Grilles are shipped in a "master carton" of 10-40 grilles

1/2" Cube Eggcrate Grille for T-Bar Ceiling
Return, T-Bar (No-Screw Holes), White
Item Number Duct Size Neck Size Overall Size  Pieces
per
Carton
Price
per
Piece
AG-10X10-RTW 10" x 10  9 3/8" x  9 3/8" 11 3/4" x 11 3/4" 40 $21.85
AG-10X22-RTW 10" x 22"  9 3/8" x 21 3/8" 11 3/4" x 23 3/4" 10 $37.35
AG-22x22-RTW 22" x 22" 21 3/8" x 21 3/8" 23 3/4" x 23 3/4" 10 $58.40
AG-22X46-RTW 22" x 46" 21 3/8" x 45 3/8" 23 3/4" x 47 3/4" 8 $104.90



Surface Mount Grilles with mounting holes
1/2" Cube Eggcrate Grille
Item Number Duct Size Neck Size Overall Size Pieces
per
Carton
Price
per
Piece
AG-6X6-RSW 6" x 6"  5 3/8" x 5 3/8" 7 3/4" x 7 3/4" 40 $15.00
AG-8X8-RSW 8" x 8" 7 3/8" x 7 3/8" 9 3/4" x 9 3/4" 40 $17.55
AG-10X10-RSW 10" x 10" 9 3/8" x 9 3/8" 11 3/4" x 11 3/4" 40 $21.85
AG-12X12-RSW 12" x 12" 11 3/8" x 11 3/8"  13 3/4" x 13 3/4" 20 $26.90



Radial Dampers - Galvanized Steel Mill Finish
Item Number  Size Compatible Diffuser Pieces per
Carton
Carton
Weight
Price
per
Piece
ALRD6 6" AL2C6, AL3C6 10 4 $10.20
ALRD8 8" AL2C8, AL3C8 10 6 $12.10
ALRD10 10" AL2C10, AL3C10 10 8 $14.95
ALRD12 12" AL2C12, AL3C10 10 11 $17.95
ALRD14 14" AL2C14, AL3C14 10 15 $20.30

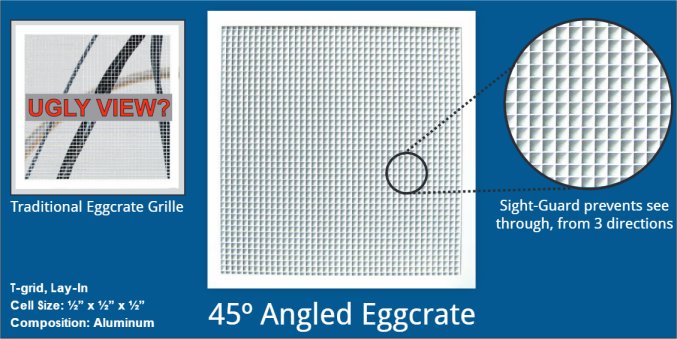

Sight-Guard Grilles - Hides Unsightly Objects in Walls and Ceilings From View

● Blocks view of objects in walls and ceilings
◦ No secondary accessories needed,
saving you money and time
● 92% free area - same as traditional Eggcrate grilles
● Eggcrate is securely locked into unique “frame channel”
◦ No rattling, squeaking, or vibrations
● All aluminum construction, strong frame and core
● Smooth and even finish around frame
◦ Electrostatically powder coated for hard finish
◦ Industry standard “British White”
● Sealed corner seams
◦ No unsightly gaps or rough edges to collect dirt
● Micro-welded neck corners
● Use in walls, drop ceilings, and other special applications

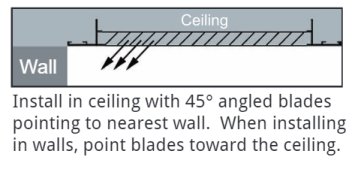

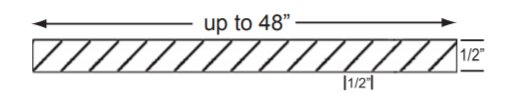

Sight-Guard Grilles - 1/2" Cube at 45 degree angle
White Aluminum Eggcrate Grille for T-Bar Ceiling

Item Number Duct Size Neck Size Face / Overall Size Mount Pieces
per
Carton
Price
per
Piece
SG-10X10-RTW 10" x 10"  9 3/8" x  9 3/8" 11 3/4" x 11 3/4" T-Bar 40 $48.55
SG-10X22-RTW 10" x 22"  9 3/8" x 21 3/8" 11 3/4" x 23 3/4" T-Bar 10 $51.95
SG-22X22-RTW 22" x 22" 21 3/8" x 21 3/8" 23 3/4" x 23 3/4" T-Bar 10 $77.95
SG-22X46-RTW 22" x 46" 21 3/8" x 45 3/8" 23 3/4" x 47 3/4" T-Bar 8 $167.90
