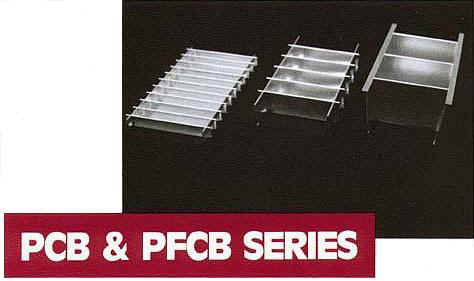

Parabolic Cross Baffle & Parabolic Flanged Cross Baffle ** PCB, PFCB **

Parabolic Cross Baffle & Parabolic Flanged Cross Baffle ** PCB, PFCB **
Description
A parabolic cross baffle fabricated from non-combus-tible aluminum. Type PCB is well suited for continuous row applications. Corners are available for the type PCB louver. Type PFCB can be modified to fit many types of lighting fixtures.

Standard Finishes: Semi specular Low IRD, full specular silver, other finishes available upon request.



  W C T F L H
Catalog No. Width - In. Baffle Spacing (Min) Tab Length - In. Flange Width - In. Length - In. Material - In. Height - In.
PCB .75 * 1 * D.N.A. * .020 .75
PFCB .75 * 1 * * * .020 .75
PCB 1.5 * 1.5 * D.N.A. * .020 1.55
PFCB 1.5 * 1.5 * * * .020 1.55
PFCB 2.0 * 2 * * * .020 2.00
PFCB 3.0 * 3 * * * .020 3.00
PFCB 4.0 * 4 * * * .020 4.00

* As specified

D.N.A. Does not apply
