Parahex

Parahex - VERY LOW GLARE PARABOLIC LOUVER - P6
Styrene & Acrylic - Silver & Clear

PARASQUARE 1	PARASQUARE 2	PARASQUARE 3
PARASQUARE 4	PARASQUARE 5	PARAHEX
LOUVER LENS	ANGLEFLEX	DECORONA

*Minimum for Plastic louvers is $100.00

*For less than full cartons there is a $30.00 charge.

*Prices are PER PIECE not PER CARTON

**Shipping IS NOT included in prices.
***For UPS there is a $10.00 packaging charge in addition to the shipping cost.

Cutting Charge is .60 per cut.

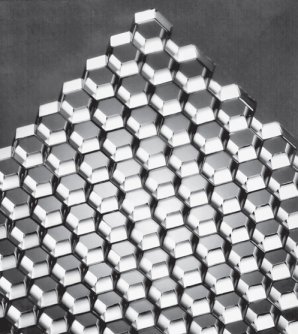

HEXAGONAL CELLS
9/16” x 9/16” x 1/2”

Parahex (P6) provides the highest degree of
uniform cut-off that is available from a small cell louver.
9/16” x 9/16” x 1/2” (14 x 14 x 12,7mm) flat back cells
produce less than half the luminance in the 45 degree
zone than competing products. P6’s hexagonal cells offer
equally high degrees of brightness control in the parallel,
perpendicular and diagonal zones. This organic form offers
not only superior lighting control, but also provides an
understated decorative alternative to square celled louvers.

Panel Sizes

UnFlanged:
Style 1

23-3/4" x 47-5/8" | (603 x 1213mm)

Materials

Polystyrene
Acrylic

Finishes

Specular Silver
Silver Permalux
Specular Gold
Aluma-Lux (semi-specular)
Black (styrene only)
Clear (Acrylic)

* Contact factory for availability

2' x 4' (23-5/8" x 47-5/8") (603 x 1213MM) Carton pack 10 - 64 LBS / 26 kg
	Color	1 - 40 pcs.	41 - 100 pcs.	101-200 pcs.	211 + pcs.
P6-24	Silver Styrene	50.50	48.50	46.50	44.50
P6-A-24	Silver Acrylic	83.00	80.00	77.00	74.00
P6-A-24-C	Clear Acrylic	71.20	69.20	67.20	65.20
