Parasquare - Plastic Parabolic Louvers
The entire Paracube Family
products represents the ultimate
in contemporary architectural design and proves comfortable lighting.
Choosing
the Right Parabolic Louver
|
Parabolic Louvers Improve the
Quality of Lighting by:
- Eliminating glare
- Rendering more precise light distribution
- Providing better contrast and image definition
- Enhancing color rendition of merchandised
products
- Shielding lamps from direct view
- Reducing luminaire surface brightness for
maximum visual comfort
|
Specular
Finish
- Precise
distribution of light
- For
areas where brightness
control is critical.
- Wide
range of product to meet your requirements
|
- Years
of easy maintenance
- Contaminants
simply wipe away
- Accidents
are corrected with minimal effort
- Add
$1.00 per 2' x 4'
- Add
$ .50 per 2' x 2'
|
- Short
lead time
- No
cave effect or sharp shadows
- Does
not show fingerprints or dust
- Will
not bend or dent
- No
extra charge
|
Specular
Gold Finish
- Decorative
finish for those special areas
- Great
for Hospitality industry
- Add
$2.00 per 2' x 4'
- Add
$ 1.00 per 2' x 2'
|
|
*Minimum for Plastic louvers
is $100.00 *For
less than full cartons there is a $30.00 charge.
*Prices are PER PIECE not PER
CARTON
**Shipping IS NOT included in
prices.
***For UPS there is a $10.00 packaging charge in
addition to the shipping cost.
Cutting Charge is .60 per cut.
PARABOLIC LOUVER WASHING INSTRUCTIONS |
|
|
|
Parasquare 1
(Paracube I)
Parasquare
1ฎ is the internationally recognized industry standard small cell
injection molded plastic parabolic louver.
The
small cell sizes provide luminances that conform to important major
standards. Parasquare 1 is available in
molded configurations that are
readily adapted to the widest range of applications and dimensional
modules.
Prices are per Piece -
Shipping is not includes
|

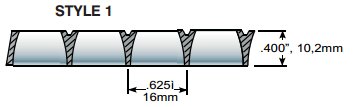

| P1-STYLE 1 Ceiling
Size Styrene 2' x 4' |
2' x 4' (23-11/16" x
47-11/16")
5/8" x
5/8" x .400" 10 per Carton
- 37 lbs. |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-1 |
Specular
Silver |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
| P1-24-1-P |
Silver
Permalux |
27.70 |
26.70 |
25.70 |
24.70 |
23.70 |
| P1-24-1-AL |
Aluma-Lux |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
| P1-24-1-G |
Specular
Gold |
28.70 |
27.70 |
26.70 |
25.70 |
24.70 |
| P1-24-1-BB |
Satin
Black |
25.70 |
24.70 |
23.70 |
22.70 |
21.70 |
| P1-24-1-BT |
Gloss
Black |
25.70 |
24.70 |
23.70 |
22.70 |
21.70 |
2' x 2' (23-11/16" x
23-11/16)
5/8" x
5/8" x .400" 20 per Carton
- 37 lbs |
| Item |
Color |
1 - 60 |
61 - 120 |
121-240 |
241-420 |
421 + |
| P1-22-1 |
Specular
Silver |
15.70 |
14.70 |
13.70 |
12.70 |
11.70 |
| P1-22-1-P |
Silver
Permalux |
16.20 |
15.20 |
14.20 |
13.20 |
12.20 |
| P1-22-1-AL |
Aluma-Lux |
15.70 |
14.70 |
13.70 |
12.70 |
11.70 |
| P1-22-1-G |
Specular
Gold |
16.70 |
15.70 |
14.70 |
13.70 |
12.70 |
| P1-22-1-BB |
Satin
Black |
15.20 |
14.20 |
13.20 |
12.20 |
11.20 |
| P1-22-1-BT |
Gloss
Black |
15.20 |
14.20 |
13.20 |
12.20 |
11.20 |
P1-STYLE 2 Ceiling
Size Styrene (Ship Lock Edges)
2' x 4' (23-11/16" x
47-11/16") Cell Size: .625" x .625" x .400"
Styrene 1/2" x 1/2" x
.400" 10 per Carton
- 37 lbs |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-2 |
Silver |
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
P1-Style 4 Fixture Size with flange Styrene 10 per Carton -
39 lbs.
Cell Size: .625" x .625" x .400
O.D. 22-3/4 " x 46-3/4 " I. D. 20-9/16 " x 44-5/8 " |
|
P1-24-4
|
Specular
Silver |
27.70 |
26.70 |
25.70 |
24.70 |
23.70 |
P1-Style 4 Fixture Size with flange Styrene
20 per Carton - 39
lbs.
Cell Size: .625" x .625" x .400
O.D. 22-3/4 X 22-3/4 I. D.
20-15/16 X
20-15/16 |
|
P1-22-4
|
Specular
Silver |
21.35 |
20.85 |
19.35 |
18.85 |
17.35 |
P1-Style 4X Fixture Size with flange Styrene 10 per Carton
Cell Size: .625" x .625" x .400
O.D. 22-1/2 " x 46-1/2 " I. D. 20-9/16 " x 44-5/8 "
|
|
P1-24-4X
|
Specular
Silver |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
ESP- 975 Fixture
Size with flange
2' x 4' (22-1/2" x
46-1/2") Flange is 1-3/32"
Styrene 1/2" x 1/2" x
.400" 10 per Carton |
|
P1-24-4X |
Specular Silver
|
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
ESP- 975 Fixture
Size with flange
2' x 4' (22-1/2" x
46-1/2") Flange is 1-3/32"
Styrene 1/2" x 1/2" x
.400" 10 per Carton |
|
P1-24-4X-ESP |
Specular Silver
|
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
ESP Ceiling
Size
2' x 4' (23-11/16" x
47-11/16")
Styrene 1/2" x 1/2" x
.400" 10 per Carton |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-1-ESP |
Silver |
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
Fixture
Size with flange
2' x 4' (22-1/2"
x 46-1/2") Flange is 1-3/32"
Styrene
9/16" x 9-16" x .400 10 per Carton
55 lbs. |
| P1-24-4X-ESP |
Silver |
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
VDT Ceiling
Size
2' x 4' (23-11/16"
x
47-11/16")
Styrene 1/2" x 1/2" x
1/2" 10 per Carton 63 lbs. |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-1 -VDT |
Silver |
30.65 |
29.60 |
28.55 |
27.10 |
25.50 |
 |
Panel
Size
UnFlanged:
Style 1
- 23-11/16 " x 47-3/4
" (603 x 1213mm)
Style 2
- 23-3/4 " x 47-3/4
" (603 x 1213mm)
Flanged:
Style 4
- O.D. 22-3/4 " x
22-3/4 " | I. D. 20-9/16 " x 20-9/16 "
- O.D. 22-3/4 " x
46-3/4 " | I. D. 20-9/16 " x 44-5/8 "
Style 4X
- O.D. 22-1/2 " x
46-1/2 " | I. D. 20-9/16 " x 44-5/8 "
- O.D. 22-1/2 " x
46-1/2 " | I. D. 20-5/16 " x 44-3/8 " (ESP)
Materials
|
*For all orders under $200.00
there is a $30.00 extra charge.
*All
plastic eggcrate and louvers must be purchased in full cartons.
Parasquare 2
(Paracube II)
P2
CEILING STYLE
1-1/2" X 1-1/2" X 1"
38 x 38 x 25,4mm
P2 is the industry standard
1-1/2" x 1-1/2" x 1" (38 x 38 x 25,4mm) injection molded plastic
parabolic
louver. This internationally accepted
product satisfies the demands of both efficiency and luminance
control. Molded in a number of configurations P2 is adaptable to a wide
range applications. P2 is an
important option when a medium scale plastic parabolic louver is
required.
The Paracube II louver is our most versatile
louver offering both glare control and higher light output
while maintaining a visually pleasing and comfortable environment.
The larger cell design provides
higher efficiency and makes the Paracube II excellent for retail
environments, high ceiling and other
lighting applications where more light is desirable. The Paracube
II is also ideal for office settings
with greater spacing between fixtures.
- 1-1/2" x 1-1/2" x 1"
cell size
- Provides more light
along with controlled brightness
- Good glare control
- Luminaire Efficiency,
65.4%
- Coefficient of
Utilization .73
- Visual Comfort
Probability 94
- Molded in Acrylic or
Polystyrene material
- Ultralux advanced hard
protective easy-to-clean metalized surface is standard on all
Paracube II and
Paracube III louvers.
- Silver metalized finish
is standard on all products. Gold, White and Black finishes are
also available
|
|
|
|
Prices
are per Piece - Shipping is not includes
|
|

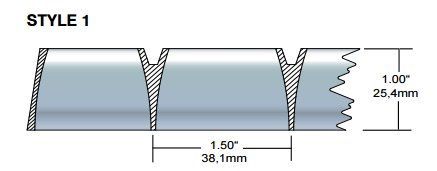

Ceiling Size P2 Style 1 NO FLANGE
2'
x 4' ( 23-11/16" x
47-3/4")Silver Styrene
1-1/2" x 1-1/2" x 1" Cell Size
8 pieces per carton 60 LBS / 27kg
|
|
Item
|
Color
|
1
- 24
|
25
- 64
|
65-120
|
121-208
|
208
+
|
|
P2-24-1
|
Specular
Silver
|
42.15
|
39.15 |
37.15 |
35.15 |
32.15 |
|
P2-24-1-AL
|
Silver Aluma-Lux
|
42.15
|
39.15 |
37.15 |
35.15 |
32.15 |
|
P2-24-1-P
|
Silver Permalux
|
43.15
|
40.15 |
38.15 |
36.15 |
33.15 |
|
P2-24-1-G
|
Specular
Gold
|
44.15
|
41.15 |
39.15 |
37.15 |
34.15 |
Fixture Size

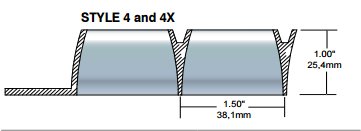

P2 Style 4 WITH FLANGE
OD: 22-3/4 X 46-3/4
ID: 20-3/8 X 44-3/8
8
pieces per carton 57 LBS / 26kg
|
|
Item
|
Color
|
1
- 24
|
25
- 64
|
65-120
|
121-208
|
208
+
|
|
P2-24-4
|
Specular
Silver
|
41.05
|
38.05 |
36.05 |
34.05 |
32.05 |
|
P2-24-4-AL
|
Silver Aluma-Lux
|
41.05
|
38.05 |
36.05 |
34.05 |
32.05 |
|
P2-24-4-P
|
Silver Permalux
|
42.05
|
39.05 |
37.05 |
35.05 |
33.05 |
|
P2-24-4-G
|
Specular
Gold
|
43.05
|
40.05 |
38.05 |
36.05 |
34.05 |
|
Fixture
Size P2 Style 4X 2' x 4' WITH FLANGE
OD: 22-1/2 X 46-1/2
ID: 20-3/8 X 44-3/8
8
pieces per carton 57 LBS / 26kg
|
|
Item
|
Color
|
1
- 24
|
25
- 64
|
65-120
|
121-208
|
208
+
|
|
P2-24-4X
|
Specular
Silver
|
40.55 |
37.55 |
34.55 |
32.55 |
30.55 |
|
P2-24-4X-AL
|
Silver Aluma-Lux
|
40.55 |
37.55 |
34.55 |
32.55 |
30.55 |
|
P2-24-4X-P
|
Silver Permalux
|
41.55 |
38.55 |
35.55 |
33.55 |
31.55 |
|
P2-24-4X-G
|
Specular
Gold
|
42.55 |
39.55 |
36.55 |
34.55 |
32.55 |
|
Fixture
Size P2 Style 4 2' x 2' WITH FLANGE
OD: 22-3/4 X 22-3/4
ID: 20-3/8 X 20-3/8
16 pieces per carton 57 LBS / 26kg
|
|
Item
|
Color
|
1
- 32
|
33
- 64
|
65-120
|
121-208
|
208
+
|
|
P2-22-4
|
Silver
|
26.60 |
24.60 |
22.60 |
20.60 |
18.60 |
|
Fixture
Size P2 Style 4X 2' x 2' WITH FLANGE
OD: 22-1/2 X 22-1/2
ID: 20-3/8 X 20-3/8
16 pieces per carton 57 LBS / 26kg
|
|
P2-22-4X
|
Silver
|
27.60
|
25.60
|
23.60
|
21.60
|
20.60
|
|
Fixture
Size P2 Style 4 1' x 4' WITH FLANGE
OD: 11-1/2 " x 47-1/2 "
ID: 9-1/4 " x 45-1/4 "
16 pieces per carton 57 LBS / 26kg
|
|
P2-14-4
|
Silver
|
29.20
|
27.20
|
25.20
|
23.20
|
21.20
|
|

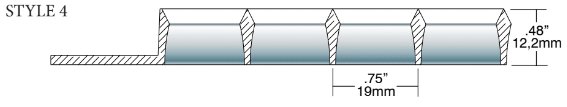

Parasquare
3 (Paracube III)
Parasquare
3's mid-sized 3/4" x 3/4" x 1/2" (19 x 19 x 12mm) cells
provide 35 degree shielding and
maintains energy saving efficiencies.
Parasquare 3 reflects our commitment to high efficiency louvers
by
offering not only an unsurpassed optically engineered wedge back design
but also the molded louver
configurations that will maximize energy
budgeted appliances. The four flanged configurations assure
finished parts
with only a minimal amount of flange to block the passage of light and for
the world market
Parasquare 3 is molded in two ready to install unflanged
metric panel sizes.
|
|
Prices are per
Piece |
|

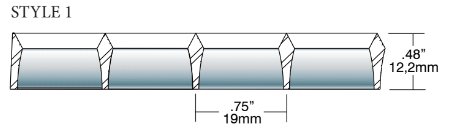

Ceiling
Size 2 x 4' (
23-11/16" x 47-11/16")
Silver Styrene 3/4 X 3/4 x 1-1/2" 10 per Carton 41 lbs. |
|
Item
|
Color
|
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
|
P3-24-1
|
Silver
|
30.95 |
29.95 |
28.95 |
27.95 |
26.95 |
|
Ceiling
Size 2 x 2'
(
23-11/16" x 23-3/4")
Silver Styrene 3/4 X 3/4 x 1-1/2" 20 per Carton
41 lbs. |
|
P3-22-1
|
Silver
|
19.95
|
18.95
|
17.95
|
16.95
|
15.95
|
|
Fixture
Size with flange
OD: 22-9/16" x 46-9/16" ID: 20-7/16" x
44-7/16"
Silver Styrene 10 per Carton |
|
P3-24-4
|
Silver
|
30.95 |
29.95 |
28.95 |
27.95 |
26.95 |
|
Fixture
Size with flange
OD: 22-9/16" x 22-9/16" ID: 20-7/16" x
20-7/16"
20
per Carton |
|
P3-22-4
|
Silver
|
19.95
|
18.95
|
17.95
|
16.95
|
15.95
|
|
Fixture
Size with flange
OD: 21-11/16" x 45-13/16" ID: 19-11/16" x
43-11/16"
10 per
Carton |
|
P3-24-5
|
Silver
|
30.95 |
29.95 |
28.95 |
27.95 |
26.95 |
|
Fixture
Size with flange
OD: 21-11/16" x 21-13/16" ID: 19-11/16" x
19-11/16"
20
per Carton
|
|
P3-22-5
|
Silver
|
19.95
|
18.95
|
17.95
|
16.95
|
15.95
|
|
Parasquare
4 (Paracube IV)
Ceiling Style
3 X 3 X 1-1/2 76 x 76 x 38mm
The
Parasquare 4 combines superior beauty, light control and
the highest light transmission in parabolic louver. This larger
cell
louver offers the highest efficiency and coefficient of utilization of
any member of the Parasquareฎ family.
The Parasquare 4 is ideal
in high ceiling applications, offices with greater spacing
between
light fixtures, corridors, public and general offices, and retail
merchandising applications where light for selling is critical.
|
|
Outstanding for use where broader light
distribution is desired
Luminaire Efficiency to 67.8%
Coefficient of Utilization to .74
Visual Comfort Probability to 88
|
 |
Ceiling Style
3 X 3 X 1-1/2 76 x 76 x 38mm
|
 |
|
P4
- Style 1
Ceiling Size
Polystyrene |
2
X 4
23-3/4 x 47-3/4
603mm x 1213mm
5 pcs/ctn: 41LBS/ 18.6kg |
2
X 2
23-3/4 x 23-3/4
572mm x 572mm
10 pcs/ctn: 41LBS/ 18.6kg |
1
X 4
11-3/42 x 47-3/4
267mm x 1183mm
10 pcs/ctn: 41LBS/ 18.6kg |
Silver
Specular and
Aluma-Lux |
P4-24-1
P4-24-1-AL |
P4-22-1
P4-22-1-AL |
P4-14-1
P4-14-1-AL |
| 1 -
30 pcs. |
65.00 |
39.00 |
40.50 |
| 31 -
60 pcs. - |
61.00 |
37.50 |
39.00 |
| 61 -
90 pcs. |
58.00 |
36.00 |
37.50 |
| 91 -
120 pcs. |
54.00 |
34.50 |
35.00 |
| 121
plus pcs. |
51.00 |
33.00 |
34.50 |
| Silver
Permalux |
P4-24-1-P
add $1.00 |
P4-22-1-P
add $ .50 |
P4-14-1-P
add $ .50 |
| Gold
Specular |
P4-24-1-G
add $2.00 |
P4-22-1-G
add $1.00 |
P4-14-1-G
add $1.00 |
|
| FIXTURE STYLE
|
 |
|
|
 |
|
P4
- Style 4X
Fixture Size
Polystryene |
2
X 4
22-1/2
x 46-9/16
572mm x 1183mm
5 pcs/ctn:
41LBS/ 18.6kg |
2
X 2
22-1/2
x 22-1/2
572mm x 572mm
10 pcs/ctn:
47LBS/ 21.3kg |
1
X 4
10-1/2
x 46-9/16
267mm x 1183mm
10 pcs/ctn:
47LBS/ 21.3kg |
Silver
Specular and
Aluma-Lux |
P4-24-4X
P4-24-4X-AL |
P4-22-4X
P4-22-4X-AL |
P4-14-4X
P4-14-4X-AL |
| 1 -
30 pcs. |
63.00 |
39.00 |
40.50 |
| 31 -
60 pcs. - |
59.00 |
37.50 |
39.00 |
| 61 -
90 pcs. |
56.00 |
36.00 |
37.50 |
| 91 -
120 pcs. |
50.00 |
34.50 |
35.00 |
| 121
plus pcs. |
48.00 |
32300 |
34.50 |
| Silver
Permalux |
P4-24-4X-P
add
$1.00 |
P4-22-4X-P
add $
.50 |
P4-14-4X-P
add $
.50 |
| Gold
Specular |
P4-24-4X-G
add
$2.00 |
P4-24-4X-G
add
$1.00 |
P4-22-4X-G
add
$1.00 |
|
Parasquare
5 (Paracube V)
Parasquare
5ฎ is the low brightness louver of choice when energy budgeting is
critical and controlled
luminance is required. The 3/4 x 3/4 x 3/8 (19 x
19 x 19 mm) flat back louver design affords efficiencies
equal to those of
lenses while maintaining 99% of it's distribution in the 0-60 degree zone. P5 is
available in two molded metric panel sizes, ceiling size 2' x
4' and four flanged sizes.
|
Ceiling
Style
2'
x 4' (
23-3/4" x 47-3/4")
Styrene 3/4" x 3/4" x 3/8"
15
per Carton 41 lbs. |
|
Price
per Piece
|
| Item |
Color |
1-30 |
31-60 |
61-20 |
121-210 |
211+ |
| P5-24-1 |
Silver |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
Fixture
Size with 1-1/4" flange 22-9/16" x 46-9-16"
ID: 20-7/16 " x 44-7/16 "
Styrene 3/4" x 3/4" x 3/8" 15
per Carton 44 lbs.
with flange
|
|
Price
per Piece |
| Item |
Color |
1-30 |
31-60 |
61-20 |
121-210 |
211+ |
| P5-24-4 |
Silver |
28.75 |
27.75 |
26.75 |
25.75 |
24.75 |
|
Fixture
Size with Flange 22-9/16 X 22-9/16 ID: 20-7/16 X 20-7/16
Styrene 3/4" x 3/4" x 3/8" 30 per Carton
44 lbs. |
| Item |
Color |
1-30 |
31-60 |
61-20 |
121-210 |
211+ |
| P5-22-4 |
Silver |
18.70 |
17.70 |
16.70 |
15.70 |
14.70 |
| PLASTIC
PARABOLIC LOUVERS
Parabolic louvers represent the most
sophisticated and optically precise
lighting control media available. Our parabolic
louvers incorporate
advanced design concepts and the latest in manufacturing technology to
produce controlled lighting of unparalleled visual comfort and efficiency.
They also represent a visually attractive appearance that is in tune with contemporary design and
architectural concepts. The parabolic louver,
available in a specular finish, is truly an
advanced lighting and decorative instrument meeting today's aesthetic concerns and energy
requirements.
The parabolic contour is the shape of lighting control for today and the
future. |
 |
|
edee@edee.com
610-494-7408
610-494-7409
