P1 CEILING STYLE
5/8" X 5/8" X .400" 16 x 16 x 10,2mm
P1 is the internationally recognized industry standard small cell
injection molded plastic parabolic louver. The nominal 5/8" x
5/8" x 7/16" (16 x 16 x 10,2mm) cell size provides luminances
that conform to important major standards. P1 is available in molded
configurations that are readily adapted to the widest range of
applications and dimensional modules
Paracube 1
The entire Paracube 1 Family - ESP, VDT and HEF products represents
the ultimate in contemporary architectural design and proves comfortable
lighting. The Paracube 1 ESP offers the highest luminary efficiency
and coefficient of utilization. The ESP offers excellent glare
control and is ideal for use in a wide range of applications including
public areas, location involving more difficult of critical visual
tasks and areas with computer terminals.
The Video Display Terminal
(VDT) Series offers the best glare control properties and is
excellent for use in rooms or offices with computer terminals where
fluorescent lighting glare is a problem. The proprietary HEF is a
favorite with architects and interior designers. The tipped HEF
design reflects more light downward and helps create a feeling of
elegance while enhancing room or office lighting efficiency
Prices are per Piece -
Shipping is not includes
| P1-STYLE 1 Ceiling
Size Styrene 2' x 4' |
2' x 4' (23-11/16" x
47-11/16")
5/8" x
5/8" x .400" 10 per Carton
- 37 lbs. |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-1 |
Specular
Silver |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
| P1-24-1-P |
Silver
Permalux |
27.70 |
26.70 |
25.70 |
24.70 |
23.70 |
| P1-24-1-AL |
Aluma-Lux |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
| P1-24-1-G |
Specular
Gold |
28.70 |
27.70 |
26.70 |
25.70 |
24.70 |
| P1-24-1-BB |
Satin
Black |
25.70 |
24.70 |
23.70 |
22.70 |
21.70 |
| P1-24-1-BT |
Gloss
Black |
25.70 |
24.70 |
23.70 |
22.70 |
21.70 |
2' x 2' (23-11/16" x
23-11/16)
5/8" x
5/8" x .400" 20 per Carton
- 37 lbs |
| Item |
Color |
1 - 60 |
61 - 120 |
121-240 |
241-420 |
421 + |
| P1-22-1 |
Specular
Silver |
15.70 |
14.70 |
13.70 |
12.70 |
11.70 |
| P1-22-1-P |
Silver
Permalux |
16.20 |
15.20 |
14.20 |
13.20 |
12.20 |
| P1-22-1-AL |
Aluma-Lux |
15.70 |
14.70 |
13.70 |
12.70 |
11.70 |
| P1-22-1-G |
Specular
Gold |
16.70 |
15.70 |
14.70 |
13.70 |
12.70 |
| P1-22-1-BB |
Satin
Black |
15.20 |
14.20 |
13.20 |
12.20 |
11.20 |
| P1-22-1-BT |
Gloss
Black |
15.20 |
14.20 |
13.20 |
12.20 |
11.20 |
P1-STYLE 2 Ceiling
Size Styrene (Ship Lock Edges)
2' x 4' (23-11/16" x
47-11/16") Cell Size: .625" x .625" x .400"
Styrene 1/2" x 1/2" x
.400" 10 per Carton
- 37 lbs |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-2 |
Silver |
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
P1-Style 4 Fixture Size with flange Styrene 10 per Carton -
39 lbs.
Cell Size: .625" x .625" x .400
O.D. 22-3/4 " x 46-3/4 " I. D. 20-9/16 " x 44-5/8 " |
|
P1-24-4
|
Specular
Silver |
27.70 |
26.70 |
25.70 |
24.70 |
23.70 |
P1-Style 4 Fixture Size with flange Styrene
20 per Carton - 39
lbs.
Cell Size: .625" x .625" x .400
O.D. 22-3/4” X 22-3/4” I. D.
20-15/16” X
20-15/16” |
|
P1-22-4
|
Specular
Silver |
21.35 |
20.85 |
19.35 |
18.85 |
17.35 |
P1-Style 4X Fixture Size with flange Styrene 10 per Carton
Cell Size: .625" x .625" x .400
O.D. 22-1/2 " x 46-1/2 " I. D. 20-9/16 " x 44-5/8 "
|
|
P1-24-4X
|
Specular
Silver |
26.70 |
25.70 |
24.70 |
23.70 |
22.70 |
ESP- 975 Fixture
Size with flange
2' x 4' (22-1/2" x
46-1/2") Flange is 1-3/32"
Styrene 1/2" x 1/2" x
.400" 10 per Carton |
|
P1-24-4X |
Specular Silver
|
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
ESP- 975 Fixture
Size with flange
2' x 4' (22-1/2" x
46-1/2") Flange is 1-3/32"
Styrene 1/2" x 1/2" x
.400" 10 per Carton |
|
P1-24-4X-ESP |
Specular Silver
|
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
ESP Ceiling
Size
2' x 4' (23-11/16" x
47-11/16")
Styrene 1/2" x 1/2" x
.400" 10 per Carton |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-1-ESP |
Silver |
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
Fixture
Size with flange
2' x 4' (22-1/2"
x 46-1/2") Flange is 1-3/32"
Styrene
9/16" x 9-16" x .400 10 per Carton
55 lbs. |
| P1-24-4X-ESP |
Silver |
32.75 |
31.75 |
30.75 |
29.75 |
28.75 |
VDT Ceiling
Size
2' x 4' (23-11/16"
x
47-11/16")
Styrene 1/2" x 1/2" x
1/2" 10 per Carton 63 lbs. |
| Item |
Color |
1 - 30 |
31 - 60 |
61-120 |
121-210 |
211 + |
| P1-24-1 -VDT |
Silver |
30.65 |
29.6 |
28.55 |
27.10 |
25.50 |
- 1/2" x 1/2" x 3/8" cell
size - ESP
- 1/2" x 1/2" x 3/8" cell
size - VDT
- Visual Comfort Probability rating of 100
- Luminaire Efficiency 55% and Coefficient
of Utilization .60
- Optional LUX finish available which
provides a hard protective, easy-to-clean metalized surface
- Large Flange and Grid (Non-Flanged)
styles available
- Available in Polystyrene or Acrylic
material
- Silver metalized finish is standard on
all products. Gold, White and Black finishes are also available.
|

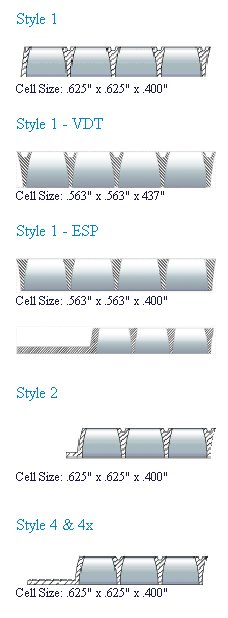

Parabolic Profiles
|
|
ESP 975-2448
1/2" x 1/2" x 3/8"
23-3/4" x 47-3/4"
|
VDT 97-2448
1/2" x 1/2" x 1/2"
23-3/4" x 47-3/4"
|
|
|
|
 |
Panel
Size
UnFlanged:
Style 1
- 23-11/16 " x 47-3/4
" (603 x 1213mm)
Style 2
- 23-3/4 " x 47-3/4
" (603 x 1213mm)
Flanged:
Style 4
- O.D. 22-3/4 " x
22-3/4 " | I. D. 20-9/16 " x 20-9/16 "
- O.D. 22-3/4 " x
46-3/4 " | I. D. 20-9/16 " x 44-5/8 "
Style 4X
- O.D. 22-1/2 " x
46-1/2 " | I. D. 20-9/16 " x 44-5/8 "
- O.D. 22-1/2 " x
46-1/2 " | I. D. 20-5/16 " x 44-3/8 " (ESP)
Materials
|
*For all orders under $200.00
there is a $30.00 extra charge.
*All
plastic eggcrate and louvers must be purchased in full cartons.
|
