Plastic Parabolic Louvers

Parasquare 3's mid-sized 3/4" x 3/4" x 1/2" (19 x 19 x 12mm) cells provide 35 degree shielding and maintains energy saving efficiencies. Parasquare 3 reflects our commitment to high efficiency louvers by offering not only an unsurpassed optically engineered wedge back design but also the molded louver configurations that will maximize energy budgeted appliances. The four flanged configurations assure finished parts with only a minimal amount of flange to block the passage of light and for the world market Parasquare 3 is molded in two ready to install unflanged metric panel sizes.

Prices are per Piece
Ceiling Size 2’ x 4' ( 23-11/16" x 47-11/16") Silver Styrene 3/4” X 3/4” x 1-1/2" 10 per Carton
Item	Color	1 - 30	31 - 60	61-120	121-210	211 +
P3-24-1	Silver	29.90	28.10	26.55	25.05	23.55
Ceiling Size 2’ x 2' ( 23-11/16" x 23-3/4") Silver Styrene 3/4” X 3/4” x 1-1/2" 20 per Carton
P3-22-1	Silver	19.50	18.5	17.50	16.50	15.50
Fixture Size with flange OD: 22-9/16" x 46-9/16" ID: 20-7/16" x 44-7/16" Silver Styrene 10 per Carton
P3-24-4	Silver	29.90	28.10	26.55	25.05	23.55
Fixture Size with flange OD: 22-9/16" x 22-9/16" ID: 20-7/16" x 20-7/16" 20 per Carton
P3-22-4	Silver	19.50	18.50	17.50	16.50	15.50
Fixture Size with flange OD: 21-11/16" x 45-13/16" ID: 19-11/16" x 43-11/16" 10 per Carton
P3-24-5	Silver	29.90	28.10	26.55	25.05	23.55
Fixture Size with flange OD: 21-11/16" x 21-13/16" ID: 19-11/16" x 19-11/16" 20 per Carton
P3-22-5	Silver	19.50	18.50	17.50	16.50	15.50

PLASTIC PARABOLIC LOUVERS

Parabolic louvers represent the most sophisticated and optically precise lighting control media available. Our parabolic louvers incorporate advanced design concepts and the latest in manufacturing technology to produce controlled lighting of unparalleled visual comfort and efficiency. They also represent a visually attractive appearance that is in tune with contemporary design and architectural concepts. The parabolic louver, available in a specular finish, is truly an advanced lighting and decorative instrument meeting today's aesthetic concerns and energy requirements. The parabolic contour is the shape of lighting control for today and the future.

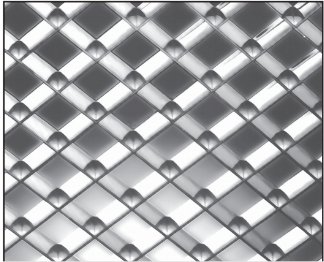

PARASQUARE 3 Plastic Parabolic Louver

Prices are per Piece

Ceiling Size 2’ x 4' ( 23-11/16" x 47-11/16") Silver Styrene 3/4” X 3/4” x 1-1/2" 10 per Carton

Fixture Size with flange OD: 22-9/16" x 46-9/16" ID: 20-7/16" x 44-7/16" Silver Styrene 10 per Carton

Fixture Size with flange OD: 22-9/16" x 22-9/16" ID: 20-7/16" x 20-7/16" 20 per Carton

Fixture Size with flange OD: 21-11/16" x 45-13/16" ID: 19-11/16" x 43-11/16" 10 per Carton
