Plastic Parabolic Louvers - ParaCube V

PARASQUARE 1 PARASQUARE 2 PARASQUARE 3 PARASQUARE 4
PARASQUARE 5 PARAHEX LOUVER LENS

Parabolic Louvers Improve the Quality of Lighting by:

  • Eliminating glare
  • Rendering more precise light distribution
  • Providing better contrast and image definition
  • Enhancing color rendition of merchandised products
  • Shielding lamps from direct view
  • Reducing luminaire surface brightness for maximum visual comfort

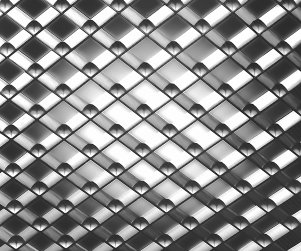

Parasquare 5 (Paracube V)
 Parasquare 5® is the low brightness louver of choice when energy budgeting is critical and controlled luminance is required. The 3/4 x 3/4 x 3/8 (19 x 19 x 19 mm) flat back louver design affords efficiencies equal to those of lenses while maintaining 99% of it's distribution in the 0-60 degree zone.  P5 is available in two molded metric panel sizes, ceiling size 2' x 4' and four flanged sizes.

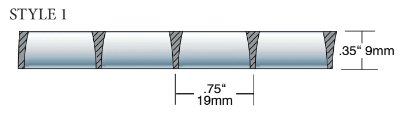

Ceiling Style
2' x 4'  ( 23-3/4" x 47-3/4") Styrene  3/4" x 3/4" x 3/8"  15 per Carton 41 lbs.

Price per Piece
Item Color 1-30 31-60 61-20 121-210 211+
P5-24-1 Silver  26.70 25.70 24.70 23.70 22.70
Fixture Size  with 1-1/4" flange 22-9/16" x 46-9-16"  ID: 20-7/16 " x 44-7/16 "
Styrene  3/4" x 3/4" x 3/8"   15 per Carton   44 lbs.

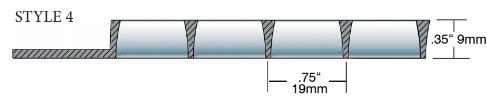

with  flange

Price per Piece
Item Color 1-30 31-60 61-20 121-210 211+
P5-24-4 Silver  28.75 27.75 26.75 25.75 24.75

Fixture Size with Flange 22-9/16” X 22-9/16” ID: 20-7/16” X 20-7/16”
Styrene  3/4" x 3/4" x 3/8"   30 per Carton  44 lbs.
Item Color 1-30 31-60 61-20 121-210 211+
P5-22-4 Silver  18.70 17.70 16.70 15.70 14.70



PLASTIC PARABOLIC LOUVERS

Parabolic louvers represent the most sophisticated and optically precise lighting control media available. Our parabolic louvers incorporate advanced design concepts and the latest in manufacturing technology to produce controlled lighting of unparalleled visual comfort and efficiency. They also represent a visually attractive appearance that is in tune with contemporary design and architectural concepts. The parabolic louver, available in a specular finish, is truly an advanced lighting and decorative instrument meeting today's aesthetic concerns and energy requirements. The parabolic contour is the shape of lighting control for today and the future.
