| Dark Sky Reflector |
Our new
Dark Sky Reflector is the company's latest innovative design for outdoor
lighting. Use this new, affordable product on new or existing
applications to improve your impact on the environment.
This product meets both old and new IES criteria for Uplight
minimization. The amount of "Cut Off" you require can be
achieved through the proper positioning of this component. With three
standard mounting heights and unlimited possibilities, you can achieve
maximum usable light while still allowing only a minimal amount of
Uplight.
Keep The Traditional Look

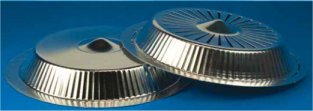

99-DSR12-BMOG-ASS - for mogul base sockets
99-DSR12-BMED-ASS - for medium base sockets

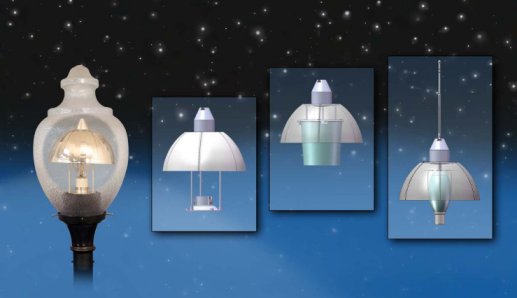

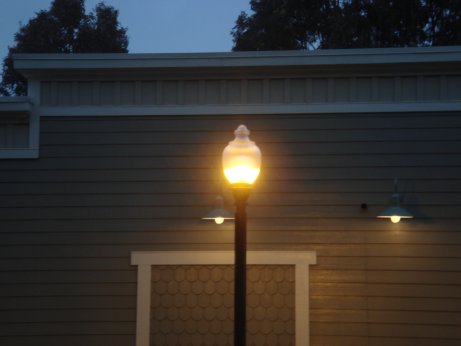

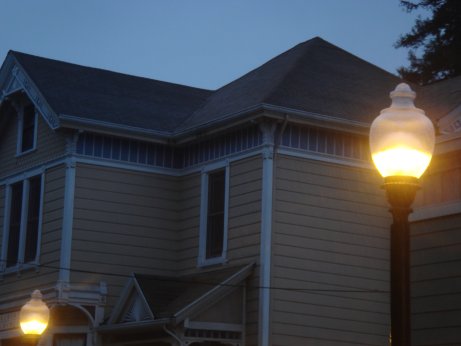

Use With Most Traditional Streetlamps, Globes & Acorns (for neck
size 8" or larger, 7" min opening) |
 |
- High Downlight Efficiency
- Low Uplight Levels
- Ideal For Retrofits
- Easy To Install, Self
Collapsing Design
- Coming Soon:

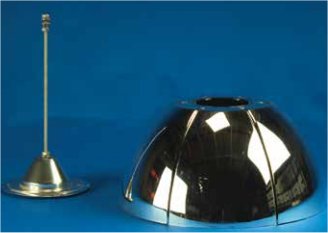

-Top Mount Version
-Type III Adaptor for Bottom Mount

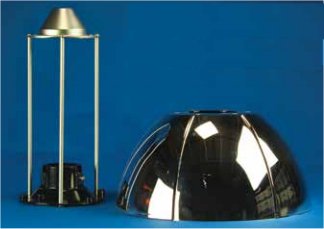

-Bottom Mount Bracket for Use
With Glass Refractors
-Smaller Unit for Use With
Smaller Enclosures
|
- Easy Access for Lamp
Replacement
- Made of High Heat Resin
- Self Positioning &
Leveling
- Adjustable Light Output
Levels
- Use With 175W MH Max (237°F/114°C)
- Type V Data Shown Below
|
|
| |
99-DSR12-BMOG-ASS
WITH 20018-CL-8F |
99-DSR12-BMOG-ASS
WITH 88064-CL-8F |
99-DSR12-BMOG-ASS
WITH 88066-CL-8F |
TOTAL LIGHT
EFFICIENCY |
69.9% |
64.7% |
66.3% |
DOWNWARD LIGHT
EFFICIENCY |
68.6% |
60.0% |
60.0% |

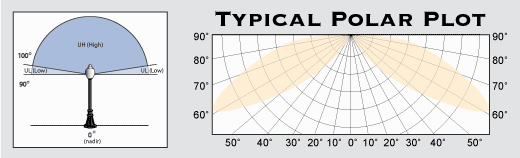

UPWARD LIGHT
LOW (UL) |
0.70% |
2.78% |
2.28% |
UPWARD LIGHT
HIGH (UH) |
0.64% |
1.94% |
4.16% |
MAX CANDLEPOWER
ZONE |
65° |
67.5° |
62.5° |
|
CLICK
HERE FOR DETAILED OPTICAL EVALUATION
|
|
|
|
|
| Dark Sky Reflector |
| Optical Evaluation
Examples of Decorative Street Lights |
175 W MH
RATED
15,000 LUMENS |
 |
 |
 |
| Forward
Light |
| Luminaire
Lumens |
5140.8 |
4492.8 |
4493.7 |
| %
Lamp Lumens |
34.27% |
29.95% |
29.96% |
| FL (0°-30°) |
1.07% |
0.73% |
0.95% |
| FM
(30°-60°) |
14.12% |
8.30% |
9.91% |
| FH
(60°-80°) |
18.13% |
15.82% |
15.70% |
| FVH
(80°-90°) |
0.96% |
5.10% |
3.41% |
| Back
Light |
| Luminaire
Lumens |
5140.8 |
4492.8 |
4493.7 |
| %
Lamp Lumens |
34.27% |
29.95% |
29.96% |
| BL (0°-30°) |
1.07% |
0.73% |
0.95% |
| BM
(30°-60°) |
14.12% |
8.30% |
9.91% |
| BH
(60°-80°) |
18.13% |
15.82% |
15.70% |
| BVH
(80°-90°) |
0.96% |
5.10% |
3.41% |
| Uplight |
| Luminaire
Lumens |
199.8 |
709.0 |
966.6 |
| %
Lamp Lumens |
1.34% |
4.73% |
6.44% |
| UL
(90°-100°) |
0.70% |
2.78% |
2.28% |
| UH
(100°-180°) |
0.64% |
1.94% |
4.16% |
| Trapped
Light |
| Luminaire
Lumens |
4518.6 |
5305.5 |
5046.0 |
| %
Lamp Lumens |
30.12% |
35.37% |
33.64% |
|
