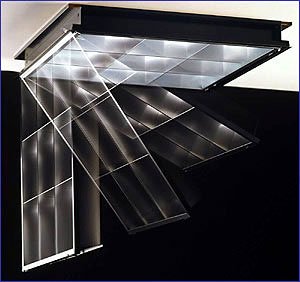

Parabolic Aluminum Retrofit Kit

RFK3 Retrofit Kit is a series of highly versatile nominal 3" (76mm) deep parabolic aluminum retrofit kits.
These assemblies are designed to be installed between an existing luminarie and the inverted tee bar
ceiling system.
The wide variety of cell configurations that are available assure the optimum blade spacing, cut-off and efficiency for each application.
RFK3 raises the fixture 2.58” up into the plenum area.

Panel Sizes
1' x 4', 2' x 2', 2' x 4'
*Special order sizes are also available		 Materials
Aluminum for louver
Steel for perimeter frame		 Finishes
Aluma-Lux
Specular
White



2 X 4    23-3/4” X 47-3/4”    603 X 1213mm
Latches are Spring Loaded

Price per Piece
Pieces
per ctn		 1-60 61-120 120+
Number of Cells Cell Configuration Finish Part Number
12 2 x 6 LI Semi-Specular RFK3-24-12-LC-SL 5 69.60 66.60 63.60
18 3 x 6 LI Semi-Specular RFK3-24-18-LC-SL 5 75.20 72.20 69.20
24 3 x 8 LI Semi-Specular RFK3-24-24-LC-SL 5 79.80 76.80 73.80
32 4 x 8 LI Semi-Specular RFK3-24-32-LC-SL 5 84.80 81.80 78.80



2 X 2    23-3/4” X 23-3/4”    603 X 603mm
Latches are Spring Loaded

Price per Piece
Pieces
per ctn		 1-60 61-120 120+
Number of Cells Cell Configuration Finish Part Number
9 3 x 3 LI Semi-Specular RFK3-22-9-LC-SL 10 49.60 47.60 45.60
16 4 x 4 LI Semi-Specular RFK3-22-16-LC-SL 10 53.60 51.60 49.60
