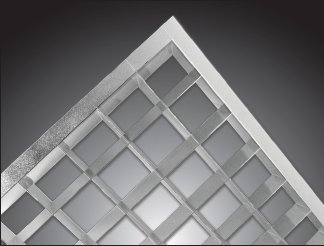

Plastic Parasquare
4 - P4
Large Cell Low Glare Parabolic Louver
Ceiling Style

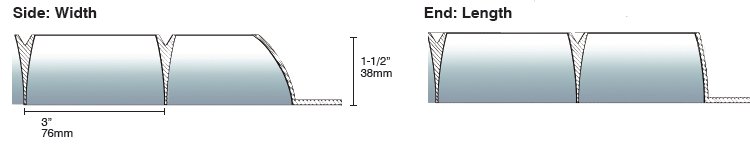

3 X 3 X 1-1/2 76 x 76 x 38mm
The
Parasquare 4 combines superior beauty, light control and
the highest light transmission in parabolic louver. This larger
cell
louver offers the highest efficiency and coefficient of utilization of
any member of the Parasquareฎ family.
The Parasquare 4 is ideal
in high ceiling applications, offices with greater spacing
between
light fixtures, corridors, public and general offices, and retail
merchandising applications where light for selling is critical.
Outstanding for use where broader light distribution is desired
Luminaire Efficiency to 67.8%
Coefficient of Utilization to .74
Visual Comfort Probability to 88 |
 |
 |
|
P4
- STYLE 1
CEILING STYLE
POLYSTYRENE |
2
X 4
23-3/4 x 47-3/4
603mm x 1213mm
5 PCS/CTN: 41LBS/ 18.6kg |
2
X 2
23-3/4 x 23-3/4
572mm x 572mm
10 PCS/CTN: 41LBS/ 18.6kg |
1
X 4
11-3/42 x 47-3/4
267mm x 1183mm
10
PCS/CTN: 41LBS/ 18.6kg |
| SPECULAR
SILVER |
P4-24-1 |
P4-22-1 |
P4-14-1 |
| 1 -
30 pcs. |
54.00 |
29.00 |
29.00 |
| 31 -
60 pcs. - |
51.00 |
26.50 |
26.50 |
| 61 -
90 pcs. |
48.00 |
25.00 |
25.00 |
| 91 -
120 pcs. |
45.00 |
23.50 |
23.50 |
| 121
plus pcs. |
42.00 |
22.00 |
22.00 |
| SILVER PERMALUX |
P4-24-1-P |
P4-22-1-P |
P4-14-1-P |
| ALUMA-LUX |
P4-24-1-AL |
P4-22-1-AL |
P4-14-1-AL |
| SPECULAR GOLD |
P4-24-1-G |
P4-22-1-G |
P4-14-1-G |
|

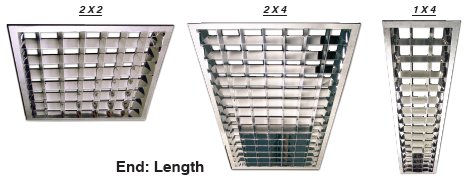

| FIXTURE STYLE
3 X 3 X 1-1/2
76 x 76 x 38mm
The
Parasquare 4 combines superior beauty, light control
and the highest light transmission in parabolic louver. This
larger cell louver offers the highest efficiency and coefficient
of utilization of any member of the Parasquareฎ
family. The
Parasquare 4 is ideal in high ceiling applications,
offices with|
greater spacing between light fixtures, corridors, public and
general offices, and retail merchandising applications where
light for selling is critical.
Outstanding for use where broader light distribution is desired
Luminaire Efficiency to 67.8%
Coefficient of Utilization to .74
Visual Comfort probability to 88 |
 |
|
|
 |
|
P4
- STYLE 4X
FIXTURE STYLE
POLYSTYRENE |
2
X 4
22-1/2
x 46-9/16
572mm x 1183mm
5 PCS/CTN: 41LBS/ 18.6kg |
2
X 2
22-1/2
x 22-1/2
572mm x 572mm
10 PCS/CTN: 47LBS/ 21.3kg |
1
X 4
10-1/2
x 46-9/16
267mm x 1183mm
10 PCS/CTN: 47LBS/ 21.3kg |
| SPECULAR
SILVER |
P4-24-4X |
P4-22-4X |
P4-14-4X |
| 1 -
30 pcs. |
54.00 |
29.00 |
29.00 |
| 31 -
60 pcs. - |
51.00 |
26.50 |
26.50 |
| 61 -
90 pcs. |
48.00 |
25.00 |
25.00 |
| 91 -
120 pcs. |
45.00 |
23.50 |
23.50 |
| 121
plus pcs. |
42.00 |
22.00 |
22.00 |
| SILVER
PERMALUX |
P4-24-4X-P |
P4-22-4X-P |
P4-14-4X-P |
| ALUMA-LUX |
P4-24-4X-AL |
P4-22-4X-AL |
P4-14-4X-P |
| SPECULAR
GOLD |
P4-24-4X-G |
P4-24-4X-G |
P4-22-4X-AL |
|
*Minimum for Plastic louvers is
$100.00
*For less than full cartons
there is a $30.00 charge.
*Prices are PER PIECE not PER
CARTON
**Shipping IS NOT included in
prices. For UPS there is a $10.00 packaging charge in addition to the shipping
cost.
|
